HT-1000 High Strength Test Hammer

Name: HT-1000 High Strength Test Hammer
Brand: Beijing Lanetech Square Co., Ltd.

Lanetech HT-1000 High Strength Test Hammer complies with JGJ/T23-2011 technical regulation and is designed for non‑destructive strength testing of high‑strength concrete in tall building structures, bridges, concrete components, and other critical infrastructure. It is ideal for construction quality control, structural safety assessment, and on‑site concrete inspection.

Send Mail

Features of HT-1000 High Strength Test Hammer　

Lanetech Rebound Hammer – Center rod made from imported material ensures high precision and wear resistance for reliable rebound testing.
Super‑hard aluminum shell – Protects the instrument from damage during on‑site work and extends service life.
External ring pointer slider – Easy friction adjustment ensures equal friction between the slider and axis, guaranteeing accurate readings. Compared with similar brands, it offers better precision, longer service life, and competitive pricing.

Specification of HT-1000 High Strength Test Hammer

Test range	50~80Mpa
Standard impact energy	9.8J
Stroke of rebound hammer	140mm
Friction of pointer slider	0.4N~0.8N
Average rebound value on steel anvil	83±2
Stiffness of tension spring:	10N/cm
Size	Φ65*486mm
Weight	≈3.5KG

Product Inquiry

Related Concrete Test Hammer

HT225-V Digital Voice Test Hammer

HT-75 Brick Rebound Test Hammer

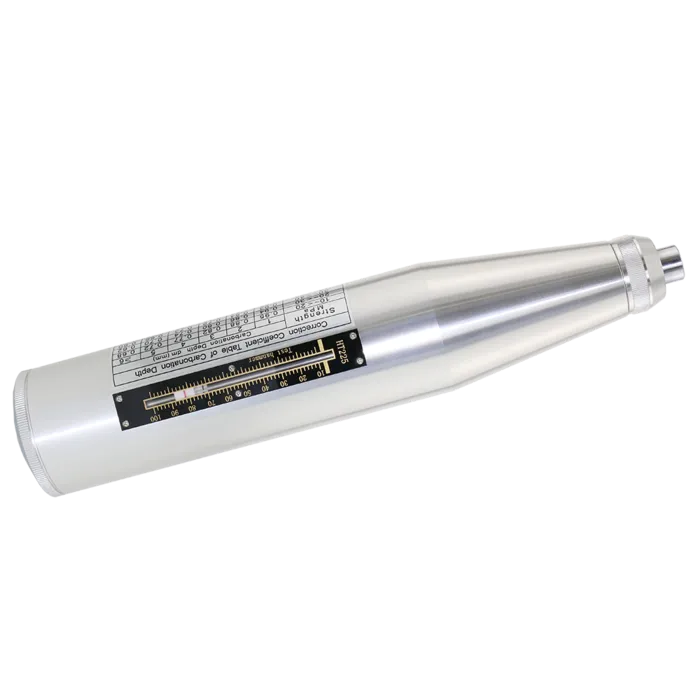

HT-225 Concrete Rebound Test Hammer
