Name: HDV-10K Eletric Test Stand
Brand: Beijing Lanetech Square Co., Ltd.

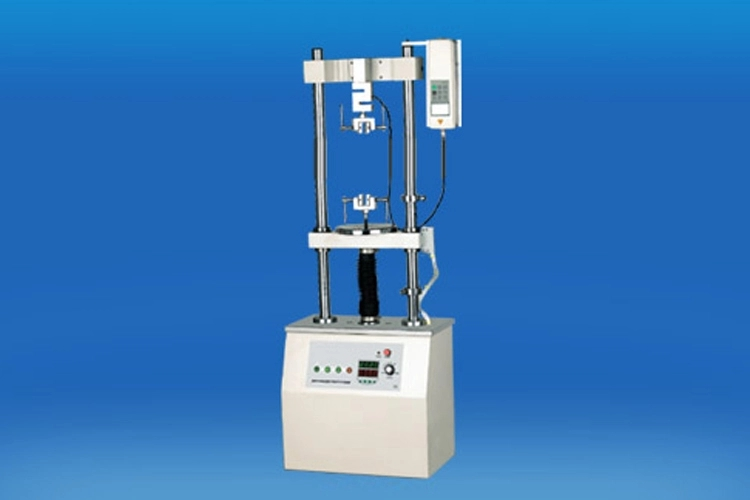

HDV-10K Eletric Test Stand

The Lanetech HDV-10K motorized test stand is specifically designed for seamless integration with HP digital force gauges and NK analog force gauges, offering a versatile and compact solution for high-precision force measurement. This user-friendly testing machine supports a wide range of applications—including tension/compression, insertion/withdrawal, fatigue, and fracture testing—making it ideal for quality control labs, manufacturing lines, R&D facilities, and industries such as automotive, aerospace, and electronics. Its space-saving design delivers reliable, repeatable results without compromising accuracy, ensuring efficient material evaluation and product development in space-constrained environments.

Specification of HDV-10K Eletric Test Stand

Lanetech HDV-10K Motorized Test Stand – Specifically engineered for HP digital force gauges and NK analog force gauges, ensuring precise load control and stable fixture alignment.

Advanced control features – Equipped with stepless timing, both manual and automatic control modes, integrated test number and test time controller, plus a clear LED display for real-time monitoring.

Robust drive system – Built-in overload protection and a high-quality motor deliver reliable, long‑lasting performance for continuous testing.

Versatile testing applications – Easy to operate and widely used for tension/compression, insertion/withdrawal, fatigue, and fracture testing across quality control labs, production lines, and R&D facilities.

Parameter of HDV-10K Eletric Test Stand

Capacity scale

10000N;

Stroke length

220 mm;　

Speed range

30~240 mm/min;　

Dimension size

410*260*1000(mm); (L*D*H)

Net weight

80 Kgs;　

Counter

working cycle is 9999 times in one cycle;

Signal input

Stop travel while reaching the limits;

Safty

Automatically stop working while overloading

Voltage

AC 220V ( AC 110V can be specified );
