Name: CT770XE Coating Thickness Gauge
Brand: Beijing Lanetech Square Co., Ltd.

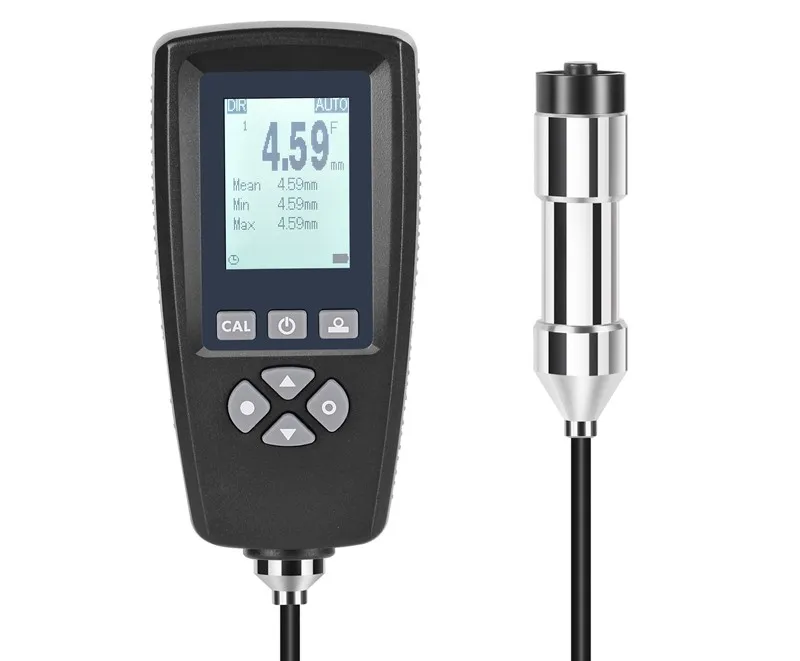

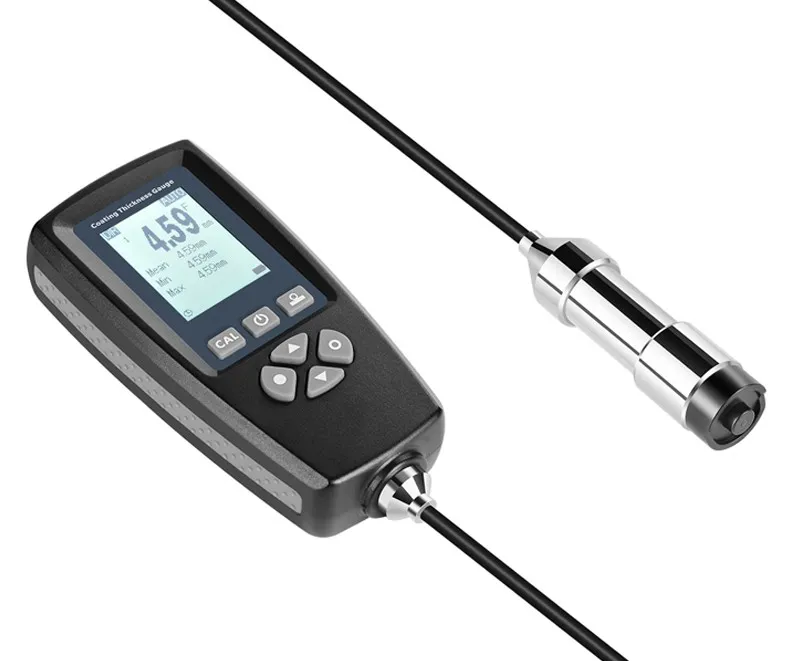

CT770XE Coating Thickness Gauge

CT770XE Split Coating Thickness Gauge - Lanetech's advanced dual-mode instrument with magnetic & eddy current testing technologies. Delivers rapid, non-destructive, highly accurate coating measurements for both laboratory and field applications.

Industry Applications: Metal Processing & Chemical Industries；Goods/Commodity Inspection & Electroplating； Spraying & Oil Pipeline Corrosion Protection；Aluminum Profiles & Steel Structures；Shipbuilding & Aerospace Industries；Power Industry & Boiler Inspection；Technical & Safety Supervision.

Features of CT770XE Coating Thickness Gauge

CT770XE Coating Thickness Gauge - Lanetech's advanced dual-technology instrument utilizing magnetic & eddy current methods for precision measurements.

Dual Measurement Technologies:

Magnetic Induction: Measures non-magnetic coatings on ferrous metal substrates

Eddy Current: Measures non-conductive coatings on non-ferrous metal substrates

Smart Measurement Modes:

Single Mode: High-precision averaging with automatic filtering of erroneous readings for accurate, stable results

Continuous Mode: Rapid real-time scanning for efficient large-area inspections,

Advanced Features:

Real-time temperature compensation (industry-leading technology) automatically adjusts for environmental and probe temperature variations

Comprehensive data statistics: MEAN, MAX, MIN, No., S.DEV (standard deviation)

Split-body design with automatic iron/aluminum base recognition - no probe replacement needed

Bluetooth connectivity for real-time data transmission and cloud integration

Professional Applications: Ideal for manufacturing, quality control, field inspections, and laboratory analysis across multiple industries.

Parameters of CT770XE Coating Thickness Gauge

Probe

F5 &N3; Detect the substrates type(F/N) Automatically

Range

Fe:0~5000um; Nfe: 0~3000um

Principle

Magnetic induction; Eddy currents

Length external probe

accuracy

±(2%±1um)

Resolution

0-99.9um(0.1um), others(1um)

Display Screen

128*128dots LCD, can be rotated to use easily

Interface

Menu type

Alarm

Red LED alarm indication, set alarm limit

Statistics

Mean,maximum, minimum ,standard deviation

Data

Readings can be stored, recalled and deleted

Calibration

Zero calibration, Multi-point

Transfer Data

Connect PC via USB and download readings

Language

Multi-language

Memory data

2000 readings in 5 groups

Unit

um, mm and mils

Power supply

Two 1.5v AAA batteries

Interface

USB

Proper environment

-10 to 50℃

Storage environment

-10 to 60℃

Certificate and standard

CE,ROHS, ISO 2178, 2360, GB/T 4956/4957-2003

Size

113mmX53mmX24mm

Weight

80g

Name	Quantity
Main Body	1 Pcs
Test Blocks	Iron base1 Pcs; Aluminum base1 Pcs
Thickness measuring foil	5 Pcs
Manual	1 Set
