Name: UT700 Ultrasonic Thickness Gauge
Brand: Beijing Lanetech Square Co., Ltd.

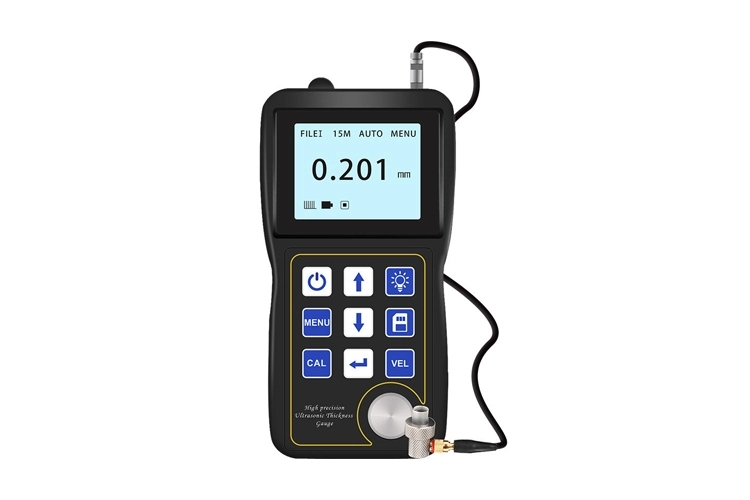

UT700 Ultrasonic Thickness Gauge

UT700 Ultrasonic Thickness Gauge - Lanetech's precision instrument utilizing Echo-Echo ultrasonic technology for accurate thickness measurement of materials with consistent wave propagation and complete back reflection. Ideal for plates and machined components across petroleum, chemical, metallurgy, shipbuilding, aviation, and aerospace industries.

Available Configurations:

Standard Model: General-purpose thickness measurement；
High-Temperature Version: For elevated temperature applications；
Cast Iron Model: Optimized for cast iron materials；
Precision Type: High-accuracy measurement requirements；

Features of UT700 Ultrasonic Thickness Gauge

High-Frequency Single-Crystal Probe: Enables high-precision measurement of ultra-thin components (from 0.15mm).

Echo-Echo Technology: Utilizes Echo-Echo ultrasonic measurement for direct substrate thickness measurement through coatings, eliminating coating removal.

High Resolution & Wide Range: Offers 0.001mm resolution with a measurement range of 0.15mm to 20mm.

Adaptive LCD Display: Features a 128x64 dot-matrix LCD with adjustable contrast and LED backlight for clear readability in various lighting conditions.

USB Data Interface: Equipped with a USB port for fast data transfer to computers, facilitating data archiving and analysis.

PC Software Compatibility: Includes dedicated PC software for efficient data reading, management, and export.

Parameters of UT700 Ultrasonic Thickness Gauge

Be able to pass through

the coatings

EE mode can pass through 1mm coating

Measurement

range

0.15~20mm

Precision

H<10mm ±0.005mm

H≥10mm ±(0.005mm+H/100)mm

Probe size

Diameter 6mm

Measurement mode

EE/IE

Display screen size

2.4 "FSTN, LED backlight

Measurable materials

Steel, iron, glass, plastic, aluminum, etc

Sound velocity

range

1000~9999m/s

Storage capacity

500 sets of data

Units of

measurement

Metric/imperial

Language supported

Chinese/English

Working

temperature

0~50℃

Environment humidity

Relative humidity less than 90%

Power supply

2*1.5V dry battery

Product size

151*76*33mm

Product weight

220g

Name	Quantity	Name	Quantity
Host	1	Single crystal probe D15A	1
Coupling agent	1	Dry battery 1.5V	2
Manual	1	Warranty card/Certificate	1
