Name: RVTHX-150 Automatic Universal Hardness Tester
Brand: Beijing Lanetech Square Co., Ltd.

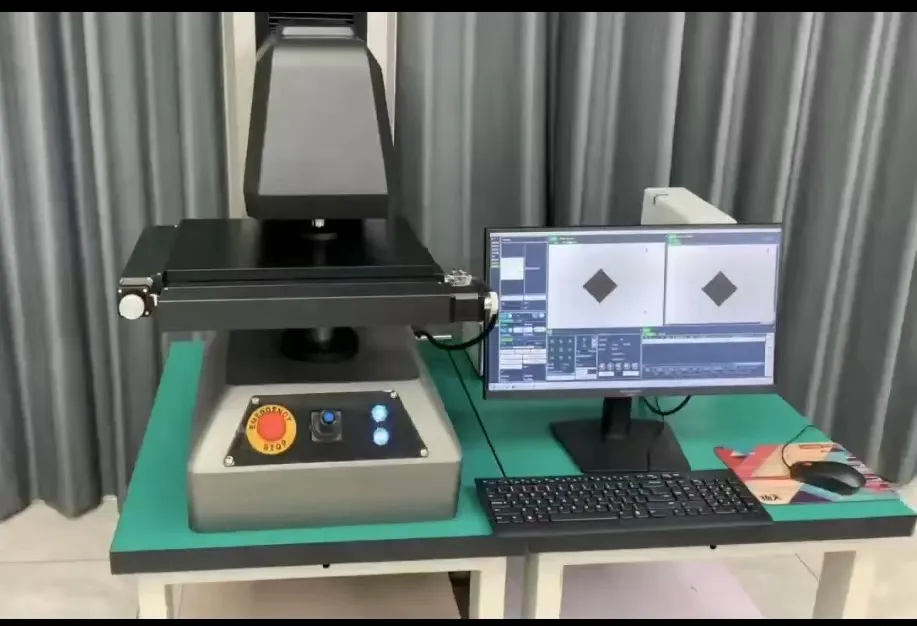

RVTHX-150 Automatic Universal Hardness Tester

Lanetech RVTHX-150 Automatic universal hardness testerHardness Tester integrates a high‑resolution

Rockwell, surface Rockwell, and Vickers testing methods. This equipment is highly automated. Optimized for industrial applications, it is also suitable for laboratory use. The test load range is 1-150 kgf. This equipment is highly automated. Optimized for industrial applications, it is also suitable for laboratory use.

Features of RVTHX-150 Automatic Universal hardness tester

Automatic turret : A 6-station automatic turret automatically switches between indenter and objectives, reducing manual operation.

Automatically apply test force ：The entire process, from loading dwelling and unloading, is completed automatically by the system.

Automatic measurement ：Using a high-precision optical or imaging measurement system, the dimensions of the indentation are automatically measured and the hardness value is calculated.

Closed-loop control system ：The loading is controlled by the load cell , which has high accuracy and good repeatability.

High-precision measurement : By combining a high-precision optical system with advanced image processing technology, the accuracy of the measurement results is ensured.

Structural stability ：The machine body is usually made of one piece of cast iron, which has good rigidity and small deformation.

Technical Specification

ROCKWELL

Initial test force

3kgf (29.42N),10kg（98.07N）

Total test force

15kgf (147.1N), 30kgf (294.2N), 45kgf (441.3N),

60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N)

Test scale

HRA、HRB、HRC、HRD、HRE、HRF、HRG、HRH、HRK、HRL、HRM、HRP、HRR、HRS、HRV、HR15N、HR30N、HR45N、HR15T、HR30T、HR45T、HR15X、HR30X、HR45X、HR15Y、HR30Y、HR45Y、HR15W、HR30W、HR45W

VICKERS

Test force

1、2、2.5、3、

5、10、20、30、40、50、100、120Kgf

Test scale

HV1、HV2、HV2.5、HV3、HV5、HV10、HV20、HV30、HV50、HV100 HV150

MAIN MACHINE

Display method

External computer

Dwelling time

0～60S

Deep throat

170mm

Maximum height of the specimen

200mm

Turret station

6-station automatic turret

Objective lens magnification

5X,10X,20X,40X

Indenter station

Rockwell indenter station

Vickers indenter station

power supply voltage

AC220V±5%，50～60Hz

Dimensions

682*400*970mm

Weight

205kg

power supply voltage

AC220V±5%，50～60Hz

Optional configuration,

Name

Detailed features

XY Automatic Worktable

Size:310*220mm travel:190*100mm

Rockwell and Vickers all have Path planning functions

Panoramic camera

Photosensitive chip : 1/2.0”

Maximum effective pixel : 1280(H)*1024(V)

Center clarity ：600LW/PH
