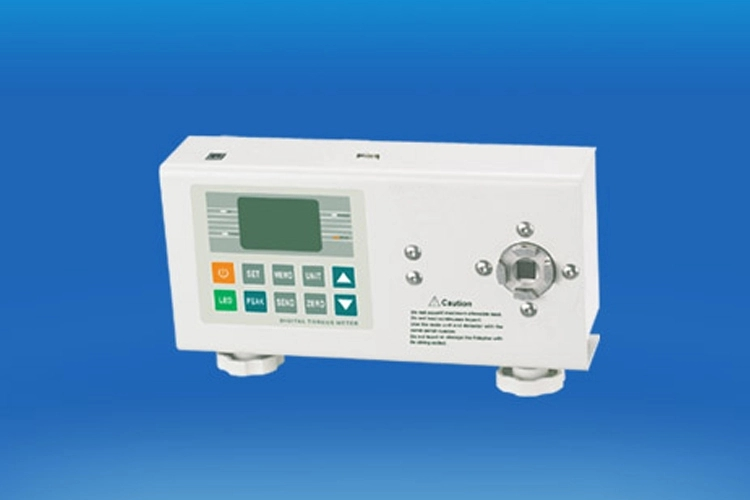

HT10-200 Torque Meter

The Lanetech HT Series 10-200 Digital Torque Meter is a high-precision measurement device specifically engineered for testing and calibrating the torque output of motorized screwdrivers, pneumatic screwdrivers, torque screwdrivers, torque wrenches, torque drivers, as well as performing parts fracture tests. Widely adopted across electrical, machinery, light manufacturing, automotive industries, and scientific research laboratories, this digital torque meter ensures accurate torque verification, improves assembly quality, and helps prevent over-torque or under-torque failures. Its robust design and user-friendly interface make it an essential tool for quality assurance, process control, and R&D applications where reliable torque measurement is critical.

With high accuracy, peak hold, data storage, and USB output for PC connectivity, the HT Series ensures reliable torque control, improves product quality, and helps prevent over‑torque or under‑torque failures in critical applications.


  • torque meter
  • torque meter

Features of HT10-200 Torque Meter

  • Lanetech HT Series Digital Torque Meter – Higher accuracy and improved resolution for precise torque measurement across diverse applications.

  • Peak hold feature – Captures and retains maximum torque values during testing, essential for verifying peak tightening or loosening forces.

  • Automatic peak clearance – Resets the stored peak value automatically between measurements, streamlining repetitive test sequences.

  • Adjustable high/low limits – User‑definable maximum and minimum thresholds enable fast pass/fail decisions on production lines.

  • Three selectable torque units – Freely switchable between N·m, kgf·cm, and lbf·in to meet global industry standards and local preferences.

  • Local gravity acceleration reset – Compensates for geographical gravity variations, ensuring consistent and accurate readings worldwide.

  • Large data storage memory – Stores hundreds of torque test results for documentation, traceability, and quality reporting.

  • Inductive backlight display – Automatic backlight activation for clear visibility in low‑light workshop or lab environments.

  • USB output with synchronous analysis software – Connects to a PC for real‑time data transfer, graphing, storage, printing, and in‑depth statistical analysis.



Parameter of HT10-200 Torque Meter

Model

HT-10

HT-20

HT-50

HT-100

HT-200

Measurement range at peak (N.m )

0.0005~1

0.001~2

0.002~5

0.005~10

0.01~20

Measurement mode

Track, Peak, Auto Peak

Accuracy

±0.5%Fs

Power(charging time)

1.5VNiHM cell×6 or rechargeable battery (recharging 6 hours)

Specified charger

Input:AC220V~240V   Output: DC9V400mA

Continuous use at full charge

20 hours

Battery life

Recharging 300 times

Dimensions/Weight

W×H×D 230mm×65mm×120mm 2Kg
