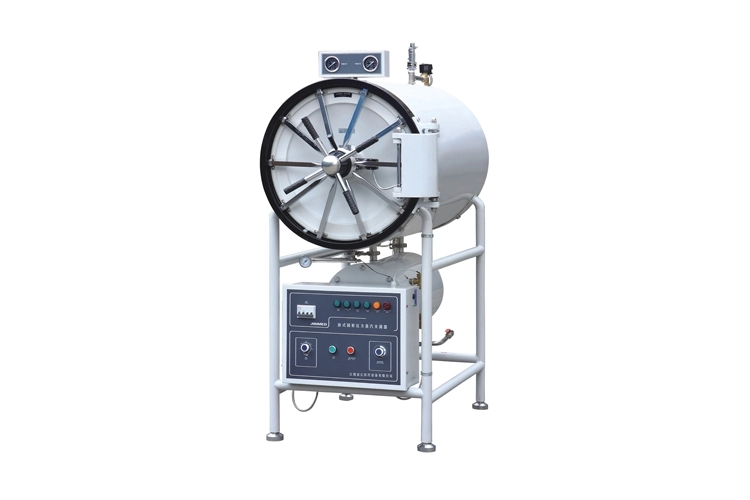

WS-500YDA Horizontal Steam Sterilizer

Specification of WS-500YDA Horizontal Steam Sterilizer

• Lanetech Horizontal Cylindrical Pressure Steam Sterilizer – Heavy-duty autoclave designed for high-capacity sterilization in medical, laboratory, and industrial environments.

• Gravity displacement air removal system – Utilizes gravity exchange to completely evacuate cold air from the chamber, ensuring thorough steam penetration and effective sterilization of wrapped and porous loads.

• Automatic steam inlet and outlet control – Steam flow is precisely regulated by the control system based on real-time chamber temperature, maintaining consistent sterilization conditions throughout the cycle.

• Ideal for clinics, scientific research institutes, and laboratories – Effectively sterilizes surgical instruments, fabric materials, glassware, culture media, and other critical items requiring reliable contamination control.

Parameter of WS-500YDA Horizontal Steam Sterilizer

• The sterilizing process controlled automatically, very easy to operate;

• Lanetech Horizontal Cylindrical Pressure Steam Sterilizer – Fully automated sterilization cycle for simple, hands-free operation.

• Built-in drying function – Specifically designed for efficient drying of medical dressings and surgical instruments post-sterilization.

• Over-temperature and over-pressure auto protection – Automatically safeguards against unsafe operating conditions to ensure reliable sterilization.

• Door safety interlock system – Prevents door opening until chamber pressure drops to 0.027 MPa; machine cannot start if door is not properly closed, ensuring operator safety.

• Safety valve with pressure relief – Automatically activates when internal pressure exceeds 0.24 MPa, releasing steam safely into the water tank.

• Low water protection with audible alarm – Automatically cuts off power and triggers an alert when water supply is insufficient, preventing heating element damage.

• Stainless steel sterilization chamber – Durable, corrosion-resistant construction for long-term reliability and hygienic operation in demanding environments.

Technical Data of WS-500YDA Horizontal Steam Sterilizer
