Name: HT6510A/D Digital Shore Hardness Tester
Brand: Beijing Lanetech Square Co., Ltd.

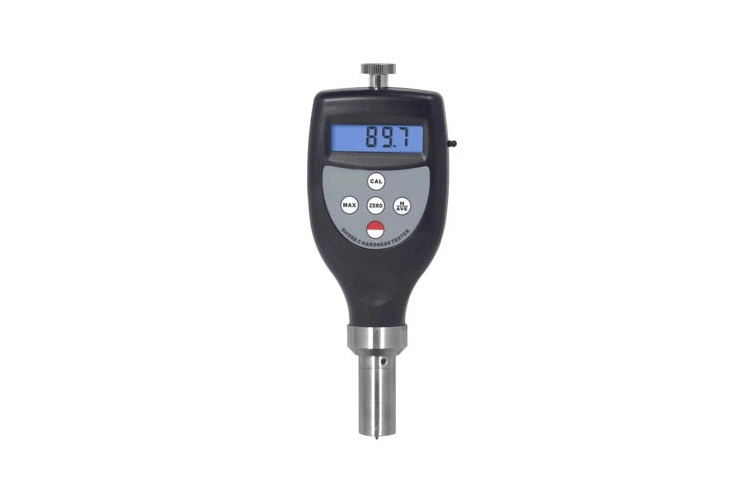

HT6510A/D Digital Shore Hardness Tester

Lanetech Digital Durometer is a precision instrument designed for shore hardness testing of rubber, plastic, and similar materials. This compact, pocket-size model features an integrated probe for portable and reliable hardness measurements, making it ideal for field and laboratory use. It complies with international standards including DIN 53505, ISO 868, ISO 7619, ASTM D2240, and JIS K7215, ensuring accurate and globally recognized results.

Specification of HT6510A/D Digital Shore Hardness Tester

Shore hardness testing of rubber, plastic, and similar materials.

Average Calculation Function: Provides consistent hardness readings by automatically calculating average values for repeated tests.

Peak Value Deposit Function: Records and stores maximum hardness readings for detailed data analysis and quality control.

Under-Voltage Alarm Function: Monitors battery levels with an alert system to prevent testing interruptions and ensure uninterrupted operation.

USB Data Output: Enables seamless connectivity to PCs for easy data transfer, analysis, and reporting via USB interface.

Bluetooth Data Output (Optional): Offers wireless connectivity for enhanced mobility, flexibility, and remote data collection in industrial environments.

Complies with international standards including DIN 53505, ISO 868, ISO 7619, ASTM D2240, and JIS K7215.

Parameters of HT6510A/D Digital Shore Hardness Tester

Model

HT-6510(A/C/D/)

Parameters

Tested Result/Mean Value/Max.Value

Unit

HA/HC/HD/

Display Range

0HA~100HA(HC/HD)

Measurement Range

10HA~90HA(HC/HD)

Accuracy

≤±1H

Resolution

0.1H

Battery Indicator

Low Battery Indicator

Auto Switch Off

√

Operating

Temperature:0ºC~50ºC Humidity:<80%RH

Power Supply

4x1.5V AAA(UM-4)Battery

2x1.5V AAA(UM-4)Battery(Stand Available)

Dimensions

162mmx65mmx28 mm

Weight

170g

Standard Accessories

Main Unit

Pin Length Teat Block

Carrying Case(B04)

Operation Manual

Optional Accessories

Shore Hardness Tester Measurement Stand

Rubber Hardness Test Block(A/D Type)

USB Data Cable with Software

Bluetooth Data Adapter with Software

Models & Applications of HT6510A/D Digital Shore Hardness Tester

Model

Indenter

Tested Materials

Hardness Value

0.79 Truncated Cone

Soft Rubber, Elastomers, Natural Rubber Products, Neoprene, Resin, Polyester, Soft PVC,Lleather, etc.

20 ~ 90 A

0.79 Truncated (Frustum) Cone

Plastics and Middle Hard Rubber Materials

Above 90 B, Below 20 D

R 0.1 Cone

Fibre Plastics, Hard Rubber, Hard Plastic Materials, Plexiglas, Stiff Thermo Plastics, Formica, Print Roller, Vinyl-plate, Cellulose Acetate, etc.

Above 90 A
