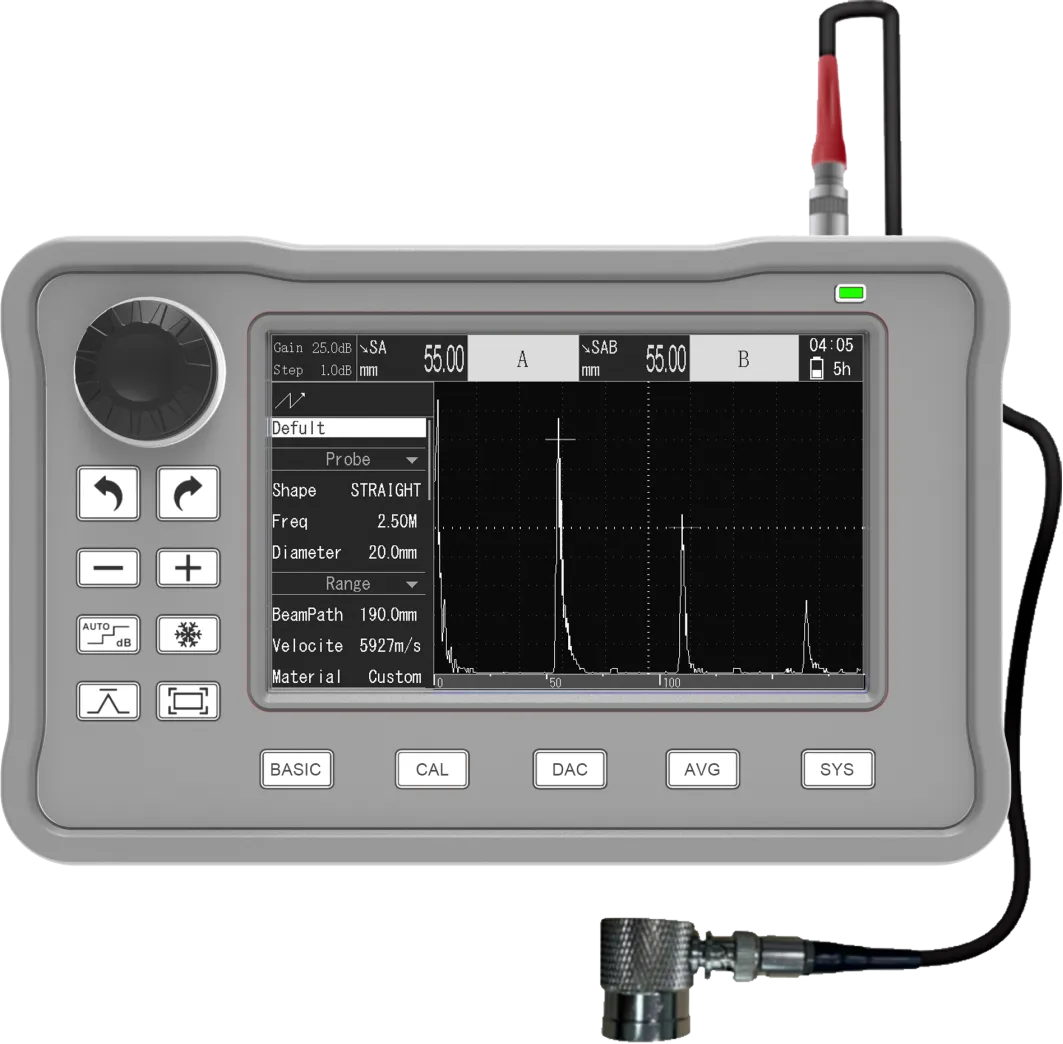

UF80 Ultrasonic Flaw Detector

Lanetech UF80 Digital Ultrasonic Flaw Detector is a cutting-edge NDT instrument designed for precise detection of internal defects in critical industrial components.

UF80 ultrasonic flaw detector is an ultra-small, portable measuring instrument that can measure the thickness of metal or magnetically permeable materials, detect internal defects (cracks, inclusions, pores, etc.) and automatically locate, evaluate and diagnose.It is widely used in test laboratory, special inspection institute, shipbuilding, oil and gas equipment, aerospace, military industry, chemical industry, electric power, steel, metallurgy, railroad, automobile manufacturing, machinery, boiler pressure vessel, special equipment, petroleum pipeline, construction industry, mold manufacturing and other industries.

Features of UF80 Ultrasonic Flaw Detector

Lightweight ergonomic construction – Ultra-lightweight chassis with comfortable grip for one-handed portability, reducing operator fatigue during extended inspections in confined or elevated areas.

Rapid charging and extended battery – PD65W fast charge technology minimizes downtime, while 12-hour continuous operation ensures all-day productivity on remote job sites.

Brilliant 5-inch IPS HD touch display – Intuitive user interface with full touch support, virtual keyboard, and quick-start guide for effortless setup and navigation.

Professional flaw detection suite – Includes DAC, AVG, automatic gain, peak memory, color half-span, and B-scan for accurate evaluation of internal defects like cracks and porosity.

Comprehensive data management – SD card output, screen capture, online firmware upgrade, and bilingual Chinese/English interface simplify documentation and reporting.

Broad industry application – Ideal for aerospace, petrochemical, power generation, manufacturing, and more, ensuring reliable NDT of welds, castings, and forgings.

Parameters of UF80 Ultrasonic Flaw Detector

Bandwidth

0.1MHz～20MHz

Gain

120dB, pace 0.1dB, 0.6dB, 1dB, 2dB, 6dB

Wave filter

Broadband, 1M, 1.25M, 2.5M, 5M, 10M, 15M, 1M-5M

Sampling rate

Hardware sampling rate 100MSPS, equivalent sampling rate 400MSPS

Detection mode

Full wave, positive half wave, negative half wave, RF, envelope

Detection range

10m (longitudinal wave carbon steel) , pace 100mm、10mm、0.1mm

Pulse mode

Sharp pulse, square wave, dual-square wave

Pulse voltage

25V～300V Stepping 25V

Pulse width

0ns～500ns continuously adjustable, 5ns pace

Damping

Strong (100Ω) 、weak (1000Ω) adjustable

Pulse repetition

frequency

Automatic or manual, auto Scope (200Hz-1KHz), manual scope (0-10KHz)

Probe channel

200 groups, supporting operations such as creating, previewing, deleting, renaming, overwriting, and restoring

Gate alarm

Gate A and B alarm, lost wave/incoming wave

Gate mode

Independent gate A, gate B

Measurement mode

Peak, Front edge, J Front edge

Quantitative mode

DAC curve, AVG(DGS) curve

Flaw detection

standards

AWS D1.1/D1.5, NB/T 47013, GB/T 29712, GB/T 11345

Save content

Single-frame, multi-frame recording (≤500 frames), screenshots, B-scan screenshots

Auxiliary functions

automatic gain, peak memory, waveform freezing, channel management, gate

alarm, gate expansion, automatic gate, full screen touch, virtual keyboard, color half span, quick screenshot

Display screen

High definition 5.0-inch 800×480 LCD, IPS_LCD

Probe interface

Dual LEMO-00 C5

Output interface

Type-C1, MINI USB

B-scan imaging

support up to 700 groups of A-scan synthesis, and the highest resolution is φ2mm

Data storage

8GB SD card

Charger

PD fast charging, standard Type-C interface(100～240V, 50～60Hz)

Size

183mm×113mm×45mm

Weight

700g, includes battery without rubber boot

Language

Chinese/English

Unit

Metric,imperial

Battery

7.4V 8000mAh Lithium battery, 12 hours of battery life

Operating temperature

-10℃～55℃

Resolution

40dB (Metrological performance requirements：≥26dB)

Dynamic range

32dB (Metrological performance requirements：≥26dB)

Sensitivity margin

50dB (Metrological performance requirements：≥42dB)

Vertical linearity

1.8% (Metrological performance requirements：≤6%)

Horizontal

linearity

0.5% (Metrological performance requirements：≤2%)

Standard Delivery

Name

Quantity

host

High-precision straight probe(2.5MHz Φ20)

High-precision angle probe(2.5MHz 10x10 K2)

probe line

PD65W charger

power line

instructions

Certificate of conformity

warranty card

SD card (8G)

Adapter plug (C to USB to PC)
