Name: UT210 Ultrasonic Thickness Gauge
Brand: Beijing Lanetech Square Co., Ltd.

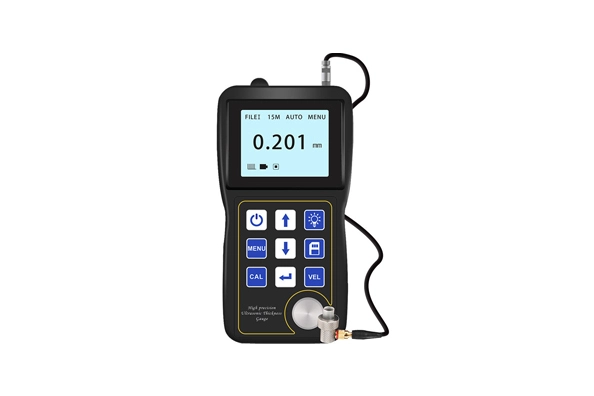

UT210 Ultrasonic Thickness Gauge

UT210 Ultrasonic Thickness Gauge - Lanetech's precision instrument featuring wide testing range, high-precision measurements, and expanded memory capacity. Equipped with backlit interface for easy readability and ergonomic design for user-friendly operation.

Ideal Applications:

Metal & Non-Metal Thickness Testing;
Corrosion Protection and Prevention Systems;
Manufacturing Quality Control;
Automotive, Aerospace & Shipbuilding Industries;
Electroplating & Surface Treatment Facilities;
Heavy & Light Engineering Applications;

Features of UT210 Ultrasonic Thickness Gauge

Advanced measurement capabilities and robust design;

Intuitive Menu Interface: Simplified operation for user-friendly experience;

High-Resolution Display: 128×64 LCD (1.8"×1.2") with white backlight for clear visibility;

Expanded Data Memory: Stores up to 500 measurement groups;

Exceptional Accuracy: 1% mm thickness variation detection;

Real-time Coupling Indicator: Ensures optimal measurement conditions;

Durable Construction: Aluminum alloy probe housing for enhanced durability;

Standard Delivery of UT210 Ultrasonic Thickness Gauge

Main Unit

1 pc

Transducer (5P￠8)

1 pc

User Manual

1 pc

Couplant

1 bottle

Battery (AAA)

3 pcs

Optional Probes:

Probe models

Special

Measuring range（stell）

Diameter

Frequency

Contacing tem-peration

5PΦ10

General

1.2-225mm

10mm

5MHz

-10—+60

5PΦ10/90

General

1.2-225mm

10mm

5MHz

-10—+60

7PΦ6

little pipe

0.75-60mm

6mm

7MHz

-10—+60

TSTU32

High Penetration

5.0-40mm（cast iron）

22mm

2MHz

-10—+60

SZ2.5P

High penetration

3.0-300mm

12mm

2.5MHz

ZW5P

High temperature

4.0-80mm

12mm

5MHz

-10—+300

DHT537

High temperature

1-300mm

10mm

5MHz

-10—+500

2M Double

Crystal probe

High penetration

4-500mm

14mm

2MHz

-10—+60

Resolution	0.01mm
Accuracy	1 mm～10 mm: ±0.05mm; 10mm～200mm: (±0.5%H+0.1)mm
Measuring Range	0.75-225mm (Steel)
Transducer frequency	7.5MHz, 5MHz, 2MHz
Velocity	1000-9999m/s
Display	128*64 LCD, LED backlight
Power supply	3×1.5V AAA batteries
Dimensions in inch	6.1×2.7×1.1
Weight	230g
