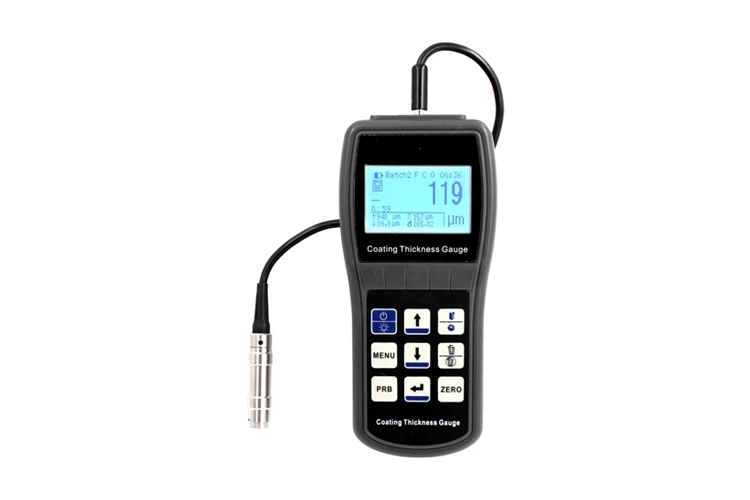

CT210 Coating Thickness Gauge

Name: CT210 Coating Thickness Gauge
Brand: Beijing Lanetech Square Co., Ltd.

CT210 Coating Thickness Gauge - Lanetech's professional instrument combining dual measurement technologies: magnetic induction (F) and eddy current (N). Delivers high-speed measurement, exceptional accuracy, and excellent repeatability. Features user-friendly operation and backlit display for clear readings in various lighting conditions. Ideal for quality control, manufacturing, and field inspection applications.

Send Mail

Features of CT210 Coating Thickness Gauge

Dual Probe System:

F Probe: Measures non-magnetic coatings on ferrous metal substrates，magnetic Induction；

N Probe: Measures non-conductive coatings on non-ferrous metal substrates, eddy Current；

Delivers high-speed measurement, exceptional accuracy, and excellent repeatability;
High-Precision LCD Display: 1.9"×1.6" backlit screen with adjustable brightness;
Advanced Data Management: 500-group storage with 5 statistical parameters:Number, Mean, Max., Min., Standard Deviation (S.DEV).
Reliable Performance: Stable measurements with industry-leading accuracy;
Quality Assurance: 12-month warranty
Ideal for quality control, manufacturing inspection, and field testing applications.

Application of CT210 Coating Thickness Gauge

Non-magnetic coatings (zinc, aluminum, chromium, copper, rubber, paint) on ferrous substrates (steel, iron)
Non-conductive coatings (rubber, paint, plastic, anodic oxide films) on non-ferrous metals (aluminum, zinc, tin)

Industry Applications: Widely used in manufacturing, metal processing, chemical industry, quality inspection, and commodity verification.

Specifications of CT210 Coating Thickness Gauge

Probe Type		F	N
Measuring Principles		Magnetic Induction	Eddy Current
Measuring Range		0～1250µm	0～1250µm
Resolution		0.1μm（0~50μm ），1μm（>50μm ）
Repeatability		3%H+1μm
Measuring Mode		Single or continuous
Calibration Mode		Zero Calibration
Accuracy	Zero calibration(um)	±(3%H+1)	±(3%H+1.5)
	one-point calibration(µm)	±[(1～3)%H+1]	±[(1～3)%H+1.5]
Measuring Condition	Min. radius of curvature(mm)	convex 1.5	convex 3
	Min. diameter of area(mm)	Φ7	Φ5
	Critical thickness of substrate(mm)	0.5	0.3
Power Supply		3×1.5V AAA Batteries
Dimensions in inch		6.1×2.7×1.1
Weight		230g

Standard Delivery of CT210 Coating Thickness Gauge

Item	Quantity
Main Unit	1
Calibration Block	1
Probe（F or N）	1
Standard testing Foils	5
User Manual	1
Battery	3
