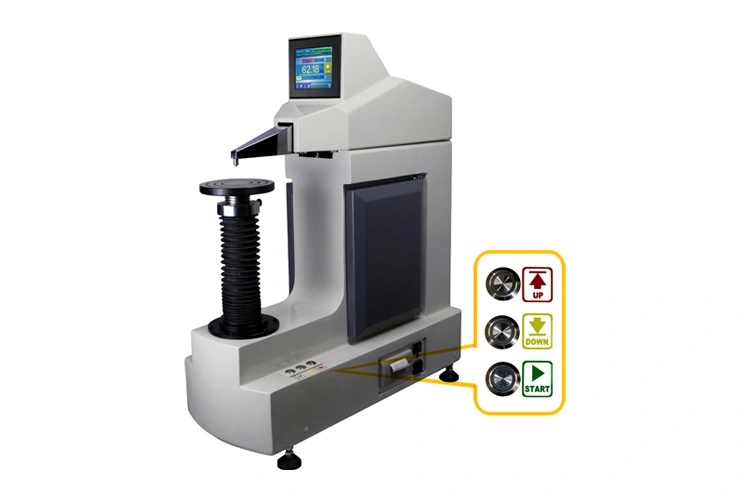

KHT800-A Automatic Rockwell Hardness Tester

Name: KHT800-A Automatic Rockwell Hardness Tester
Brand: Beijing Lanetech Square Co., Ltd.

Lanetech KHT800-A Automatic Rockwell Hardness Tester features a re-engineered design delivering enhanced stability, simplified operation, and full functionality. This highly accurate, automatic bench-top tester offers easy installation and rapid testing for precision hardness measurement.

Send Mail

Features of KHT800-A Automatic Rockwell Hardness Tester

Closed-Loop Force Control: The Lanetech KHT800-A employs a sophisticated closed-loop system (load cell + DC motor + electronic control unit), eliminating traditional weights. Ensures exceptional precision with 0.5% accuracy across all test loads.
Plug-and-Play Installation: Enables 60% faster setup vs. weight-based machines – zero professional calibration required.
Fully Automated Testing: Single-button Z-axis auto-focus initiates autonomous operation. Self-adjusts for sample size, position variance, and indenter-sample distance. Auto-elevates specimens for hands-free testing.
Precision Advantage: Surpasses manual/wheel-operated testers by eliminating human error.
Dolphin Nose Design: 300mm vertical clearance + 220mm throat depth accommodates oversized components.
Monolithic Cast Construction: Reinforced base and integrated casting deliver permanent mechanical stability.
Data Management: Features built-in micro-printer + USB connectivity for real-time report export to PCs.
This rockwell hardness method surpasses the precision of manual wheel lifting or dead weight-based machines, which are susceptible to variability based on user handling.
Additionally, this type of automatic rockwell hardness tester is equipped with an in-built micro-printer and a USB connection for PCs, facilitating convenient data documentation and transfer.

Functions of KHT800-A Automatic Rockwell Hardness Tester

KHT800-A Automatic Rockwell Hardness Tester

Regular Rockwell Hardness Tester for metals and plastics.

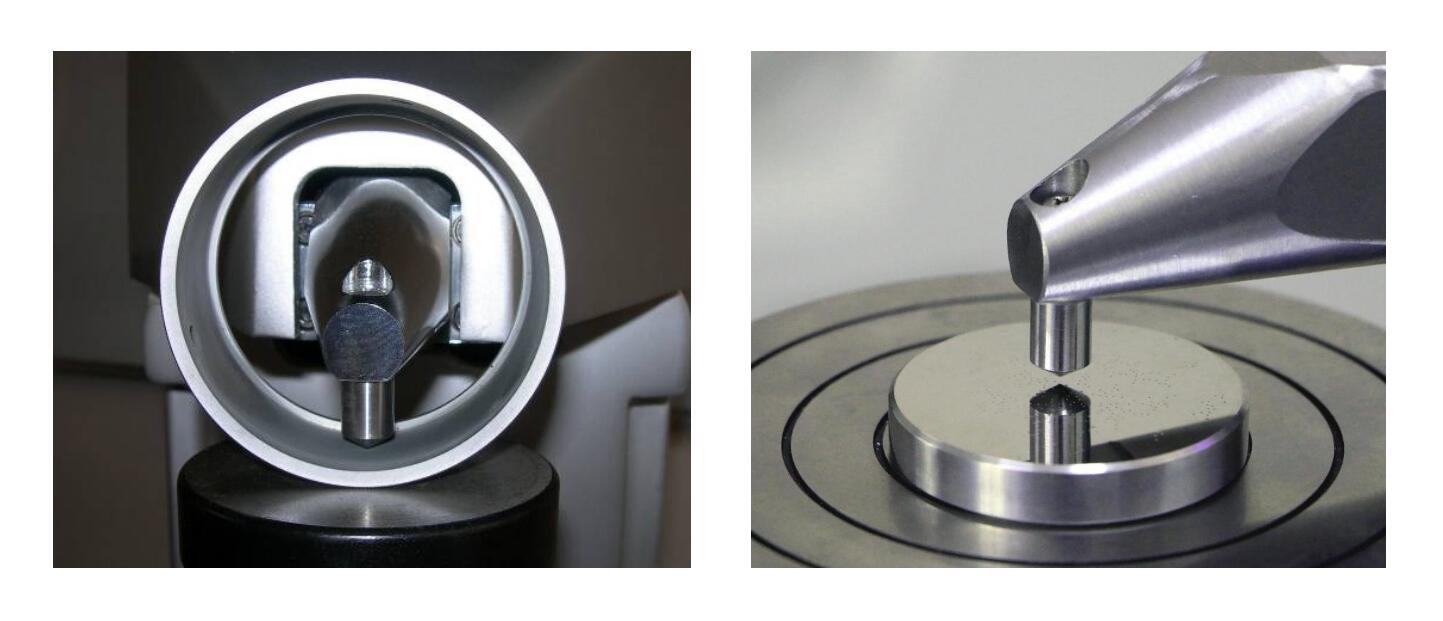

Features a horizontal dolphin nose indenter enabling internal/external hardness testing on rings, tubes, and hard-to-reach surfaces.
15 Rockwell scales with wide measurement range.
High-precision compliance (ISO 6508-2, ASTM E18).
Materials: Carbon steel, alloy steel, cast iron, non-ferrous metals.
Fully automatic test cycle: Part lift → Pre-load → Load → Dwell → Unload → Auto-results

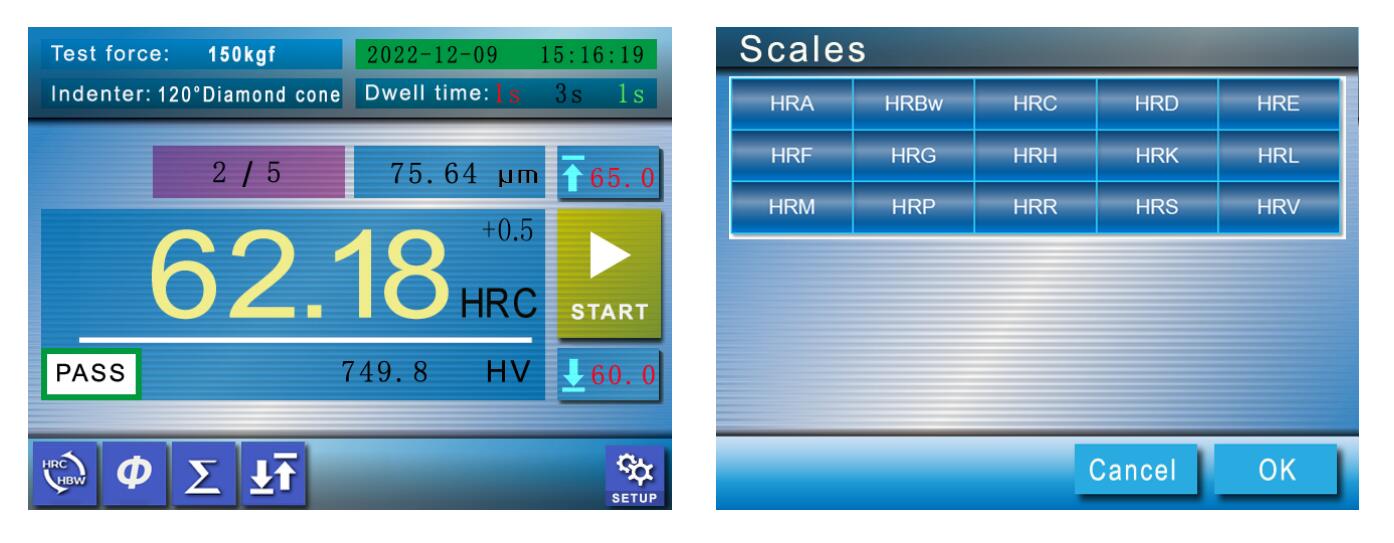

Digital display with auto-print/USB data transmission
Unit conversion: HR to HB, HV, HK, tensile strength (σb)

Parameters of KHT800-A Automatic Rockwell Hardness Tester

Preload	98.1N /10kgf
Total calculating test force	588.4N (60kgf), 980.7N (100kgf), 1471N (150kgf)
Scales	HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRP, HRR, HRS, HRV
Load dwell duration	2～50s, choose as be set and restored
Resolution	0.1HR
Display	High definition backlight LCD
Operation	Menu selectable, Membrane keypad, Upper/lower limits setting & alarming
Data statistics	Avg., Max., Min., S, R available, Curved surface correcting automatically
Memory	Max 400 items of test results stored automatically
Testing Capacity	300mm (vertical), 220mm (horizontal)
Dimensions	690mm×280mm×860mm
Power supply	AC, 220V/110V, 50～60Hz, 4A
Net weight	86kg
Gross weight	120kg

KHT800-A Automatic Rockwell Hardness Tester

Standard configuration of KHT800-A Automatic Rockwell Hardness Tester

Main machine	1
Standard hardness testing block for A scale	1
Standard hardness testing block for B scale	1
Standard hardness testing block for C scale	3
ball indenter (1/16″)	1
120°cone diamond indenter	1
Screws for indenter	2
Flat shape’s anvil	1
“V ”shape’s anvil	1
Power supply cable	1
Screwdriver for indenter mounting	1
Dust cover cloth	1

Video of KHT800-A Automatic Rockwell Hardness Tester
