HDV-5K Eletric Test Stand

Name: HDV-5K Eletric Test Stand
Brand: Beijing Lanetech Square Co., Ltd.

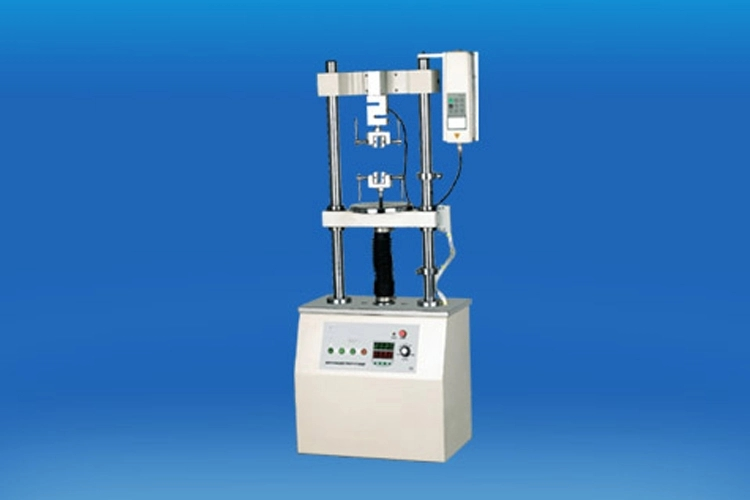

The Lanetech HDV-5K motorized test stand is purpose-built for seamless integration with HP digital force gauges and NK analog force gauges. This compact, easy-to-use testing machine delivers reliable performance across a broad spectrum of force measurement applications—including tension/compression, insertion/withdrawal, fatigue, and fracture testing. Its space-saving footprint makes it an excellent choice for laboratories, production lines, and quality control environments where high precision, repeatability, and operational reliability are critical.

Send Mail

Specification of HDV-5K Eletric Test Stand

Lanetech HDV-5K Motorized Test Stand – Specifically designed for HP digital force gauges and NK analog force gauges, ensuring precise load control and stable fixture alignment.
Advanced control features – Equipped with stepless timing, both manual and automatic control modes, integrated test number and test time controller, plus a clear LED display for real-time monitoring.
Robust safety and drive system – Built-in overload protection and a high-quality motor deliver reliable, long-lasting performance for continuous testing.
Versatile testing applications – Easy to operate and widely used for tension/compression, insertion/withdrawal, fatigue, and fracture testing across quality control labs, production lines, and R&D facilities.

Parameter of HDV-5K Eletric Test Stand

Force Capacity	5000N;
Stroke range	220 mm;
Speed range	30~300 mm/min;
Dimension	4126100(cm);
Net weight	75 Kg;
Counter	Maximum working cycle 9999 times/cycle;
Signal input	Stop working while reach the limit.
Safety protection	Automatic stop working while overloading
Voltage	AC 220V ( AC 110V can be customed );
