Name: CT910 Coating Thickness Gauge
Brand: Beijing Lanetech Square Co., Ltd.

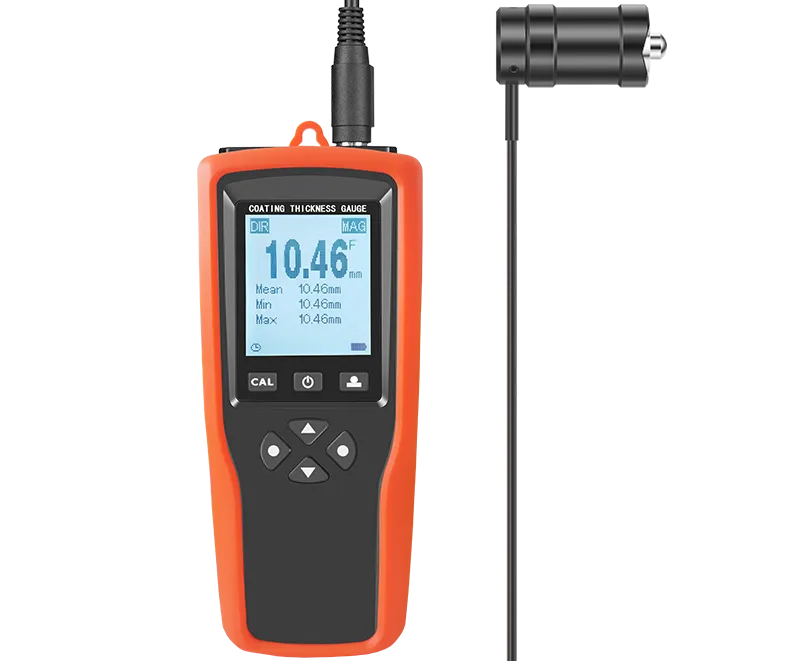

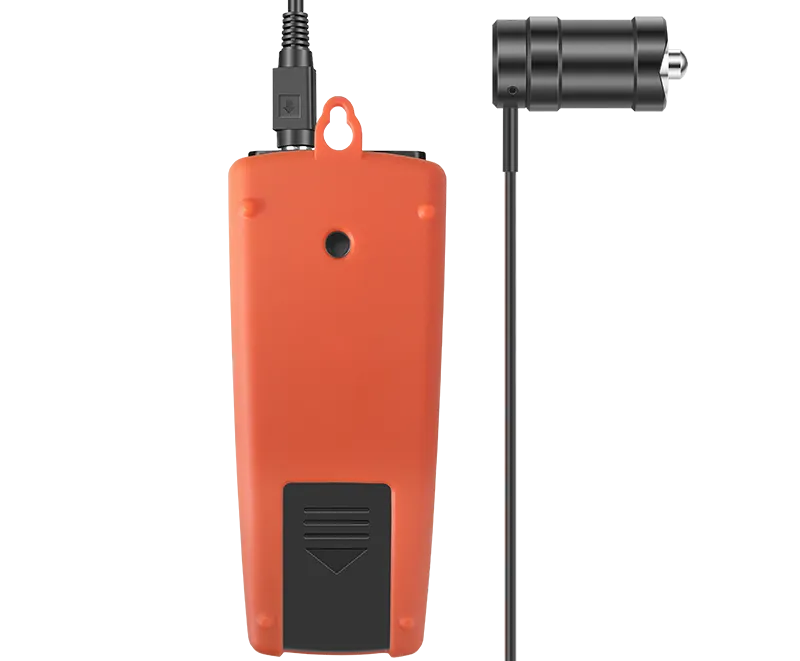

CT910 Coating Thickness Gauge

CT910 Split Coating Thickness Gauge - Lanetech's advanced instrument with magnetic testing technologies. Delivers rapid, non-destructive, highly accurate coating measurements for both laboratory and field applications.

Industry Applications: Metal Processing & Chemical Industries；Goods/Commodity Inspection & Electroplating； Spraying & Oil Pipeline Corrosion Protection；Aluminum Profiles & Steel Structures；Shipbuilding & Aerospace Industries；Power Industry & Boiler Inspection；Technical & Safety Supervision.

Features of CT910 Coating Thickness Gauge

CT910 Coating Thickness Gauge - Lanetech's advanced dual-technology instrument utilizing magnetic methods for precision measurements.

High accuracy and stability, wide measurement range

Continuous Mode: Rapid real-time scanning for efficient large-area inspections

Comprehensive data statistics: MEAN, MAX, MIN, No., S.DEV (standard deviation)

With separated probe and to replace easily

Matrix LCD display and menu interface

User can set alarm limit and red backlight indication

Readings can be stored, recalled and deleted

Easy to do zero calibration and support multi-point calibration

Connect with PC via USB and download readings

Multi-language supported

Up to 5 measurement groups supported

Detect the substrates type automatically

Professional Applications: Ideal for manufacturing, quality control, field inspections, and laboratory analysis across multiple industries.

Coating thickness testing for car paint, electroplating, surface technology, pipeline anti-corrosion coating, mechanical equipment surface anti-corrosion, chemical equipment and quality control

Parameters of CT910 Coating Thickness Gauge

Mainframe Model

CT910

Measuring units

μm, mm, mils

User calibration methodology

Zero calibration, point calibration

Measurement mode

Single, continuous

Statistics

Number of data, maximum, minimum, mean, standard variance

USB data transmission

Support

Storage capacity

2000 measurements

Display

128*128 dot

Operating environment

Temperature: -10~+50℃; Humidity: 20~90% RH (non-condensing)

Storage environment

Temperature: -20~+60℃; Humidity: 20~90% RH (non-condensing)

Power supply

3 AAA 1.5V alkaline batteries; 3 AAA 1.2V rechargeable batteries

Protection class

IP40

Dimensions

174*73*40mm

Shell material

ABS

Weight

About 200g (without batteries)

Standards

CE, ROHS, ISO 2178, 2360, GB/T 4956-2003, 4957-2003, JJG-818-2005

F10 Probe Specification

Probe Model

F10( default collocation)

Measuring principles

Electromagnetic induction

Applicable substrate

Magnetic metal

such as iron, nickel, cobalt or martensitic stainless steel

Resolution

1μm (0~5mm ); 10μm(≥5mm)

Scope of measurement

0~10mm

Typical Precision

after calibration ±(1%+5μm)

Maximum measuring speed

2 readings/sec

Minimum radius of curvature of substrate

Convex 5mm; Concave 16mm

Minimum substrate thickness

2mm

Minimum measurement area

Diameter 40mm
