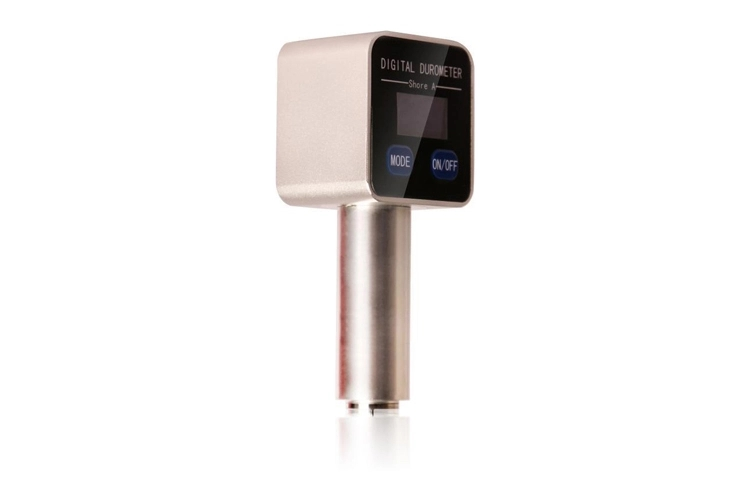

SH375 Digital Shore Hardness Tester

Specification of SH375 Digital Shore Hardness Tester

The SH375 series Digital Shore Hardness Testers are engineered for accuracy, ease of use, and portability, featuring a robust metal case and a modern design.

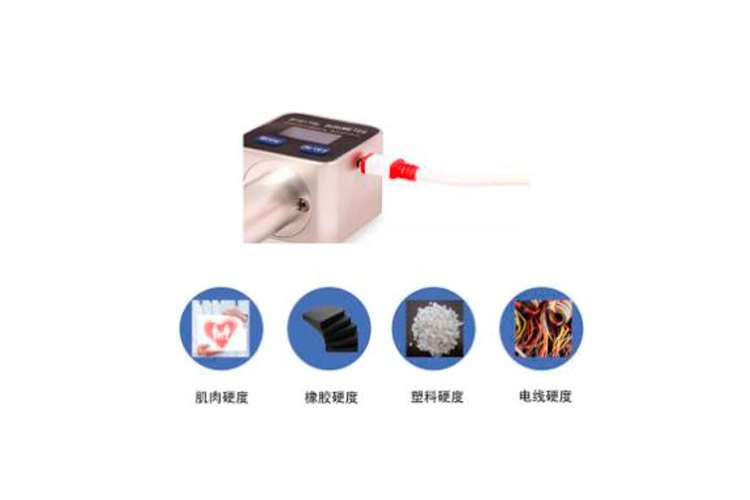

Core Applications & Test Materials:

• Plastics: Including thin films and medical equipment components.

• Synthetic Rubber: Applicable for seals, tires, rubber rollers, hoses, belts, wires, cables, and shock absorbers.

• Other Chemical Products: For a wide range of related polymer and elastomer materials.

Key Features & Technical Highlights:

• User-Friendly Design: Simple operation, portable form factor, and an attractive, durable metal casing.

• Standard Compliance: Testing force duration setting functionality complies with Chinese Standard GB531.

• Enhanced Stability: Can be simply connected to an optional test stand for highly precise and stable measurements.

• Model-Specific Applications:

•          SH375 / SH800 (Shore A): Primarily for measuring the hardness of plastics, synthetic rubber, and related chemical products.

•          SH445 (Shore D): Designed for hard plastics, hard rubber, and related chemical products.

• Advanced Display: High-contrast OLED screen for clear readability in various lighting conditions.

• Convenient Power: Supports USB charging for enhanced portability and ease of use.

• Precision Calibration:

•          SH375: Offers customizable test force tolerance of ±37.5mN, with a maximum indicating error of less than 0.5HA.

•           SH800: Meets the test force tolerance requirement of ±80mN as per verification regulation JJG304.

•           SH445: Complies with the test force tolerance of ±445mN specified in verification regulation JJG1039.

Parameter of SH375 Digital Shore Hardness Tester

Basic Outfit of SH375 Digital Shore Hardness Tester
