Name: HT6510C Digital Shore Hardness Tester
Brand: Beijing Lanetech Square Co., Ltd.

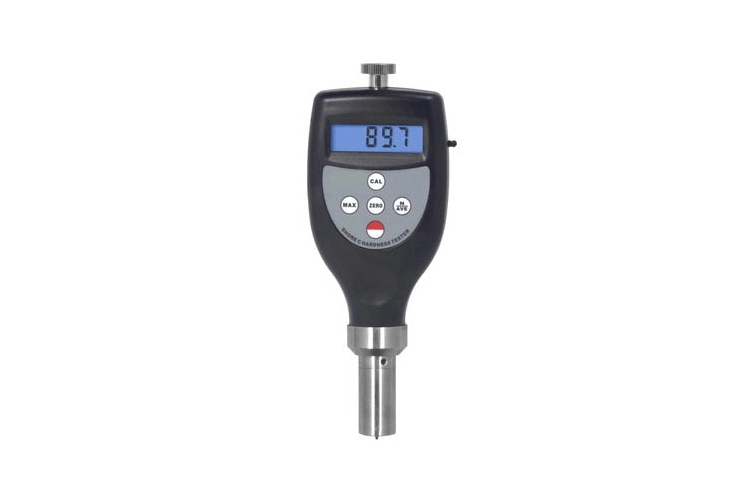

HT6510C Digital Shore Hardness Tester

The HT6510C Digital Shore Hardness Tester (Shore Durometer) delivers precise hardness measurements for rubber, plastics, hoses, cables, tires, and similar elastomers. It features a direct USB data export function for efficient transfer to PCs, facilitating streamlined analysis and reporting. This instrument is indispensable for ensuring quality control on manufacturing floors, in polymer production, and within R&D laboratories, where accurate Shore hardness data is vital for material validation, product consistency, and compliance with industry standards. Its reliability and user-centric design make it a standard tool for engineers and quality professionals.

Specification of HT6510C Digital Shore Hardness Tester

Digital Shore Hardness Tester for accurate rubber & plastic hardness measurement.

Compact and portable integrated probe and a pocket-sized design.

Compliance with international standards: DIN 53505, ISO 868, ISO 7619, ASTM D2240, and JIS K7215.

Average calculation function for consistent results.

Peak value storage for capturing maximum hardness readings.

Under-voltage alarm to ensure uninterrupted operation.

USB data output for seamless connection to PCs.

Optional Bluetooth data output for wireless data transfer.

Parameters of HT6510C Digital Shore Hardness Tester

Model

HT-6510(A/C/D/)

Parameters

Tested Result/Mean Value/Max.Value

Unit

HA/HC/HD/

Display Range

0HA~100HA(HC/HD)

Measurement Range

10HA~90HA(HC/HD)

Accuracy

≤±1H

Resolution

0.1H

Battery Indicator

Low Battery Indicator

Auto Switch Off

√

Operating

Temperature:0ºC~50ºC Humidity:<80%RH

Power Supply

4x1.5V AAA(UM-4)Battery

2x1.5V AAA(UM-4)Battery(Stand Available)

Dimensions

162mmx65mmx28 mm

Weight

170g

Standard Accessories

Main Unit

Pin Length Teat Block

Carrying Case(B04)

Operation Manual

Optional Accessories

Shore Hardness Tester Measurement Stand

Rubber Hardness Test Block(A/D Type)

USB Data Cable with Software

Bluetooth Data Adapter with Software

Models & Applications of HT6510C Digital Shore Hardness Tester

Model

Indenter

Tested Materials

Hardness Value

0.79 Truncated Cone

Soft Rubber, Elastomers, Natural Rubber Products, Neoprene, Resin, Polyester, Soft PVC,Lleather, etc.

20 ~ 90 A

0.79 Truncated (Frustum) Cone

Plastics and Middle Hard Rubber Materials

Above 90 B, Below 20 D

R 0.1 Cone

Fibre Plastics, Hard Rubber, Hard Plastic Materials, Plexiglas,Stiff Thermo Plastics, Formica, Print Roller, Vinyl-plate, Cellulose Acetate, etc.

Above 90 A
