HP Digital Force Gauge Tester

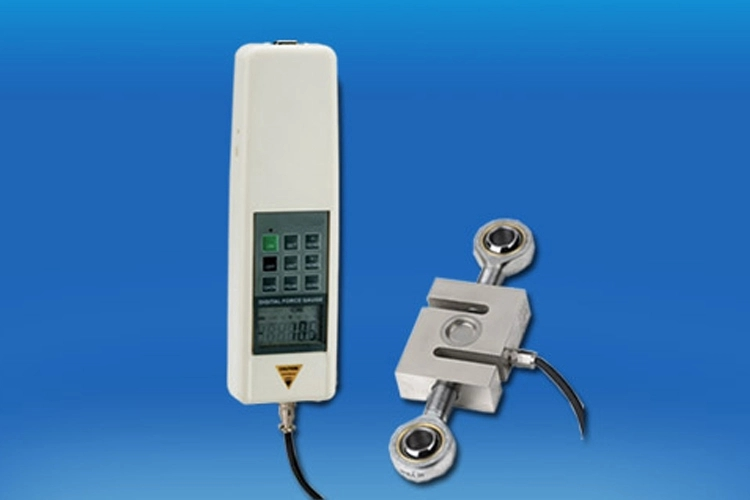

Lanetech HP Digital Force Gauge

Precision force measurement tool. As a leading hardness tester factory, Lanetech engineers this digital force meter with cutting-edge technology for unrivaled accuracy and reliability across applications. Its user-friendly interface simplifies push/pull force measurement in manufacturing, quality control, and R&D. Achieve optimal results and boost productivity effortlessly.

It feature a substantial memory capacity of 896 data points, a peak hold function to capture maximum force values, graph software for detailed analysis and visualization, and RS-232 data transfer and integration with external devices.

Send Mail

Function & Specification of HP Digital Force Gauge Tester

The HP Digital Force Gauge by Lanetech delivers high accuracy & high resolution.
Features 5 testing modes, 3 display functions, and unit conversion (N, kg, lbf) .
With gravity acceleration calibration.
Key functions include peak hold, auto peak clear, Max/Min tolerance limits,
Enhanced memory storing 896 data points.
Auto power off, 2 installation sizes, LCD rotation,
Inductive backlight, and RS-232 output.
Match a synchronous test software, which can connect to PC to get synchronous graph, and also can reserve, print, analysis, and so on.

Parameter of HP Digital Force Gauge Tester

Model

HP-2K

HP-3K

HP-5K

HP-10K

HP-20K

HP-30K

HP-50K

HP-100K

HP-200K

HP-300K

HP-500K

HP-1000K

Capacity

10KN

20KN

30KN

50KN

100KN

200KN

300KN

500KN

1000KN

Resolution

0.01KN

0.0K1N

0.1KN

0.1N

0.1KN

1KN

Sensor

Sensor Outside (S beam)

Sensor Outside (Spoke type)

Accuracy

±0.5%

± 1%

Dimension

230x66x36mm

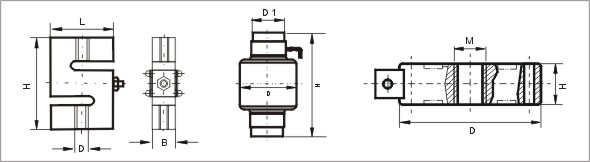

Sensor Dimension of HP Digital Force Gauge Tester

Sensor dimension of HP Digital Force Gauge Tester

Capacity	M	H	C	B	D	D1	Sensor
5000N	M12	51	76.2	19.1			S Beam compressive and tensile
1 OKN	M12	51	76.2	25.4
50KN	M20*1.5	76.2	100.4	31.8
1 00KN	M30*2	177.8	125	50.8
200KN		139.8			Φ76	Φ40	Disk type compressive and tensile
500KN		150			Φ84	Φ44	Disk type compressive and tensile
200KN	M36*2	45			Φ155		Spoke type compressive and tensile
300KN	M42*2	58			Φ180
500KN	M42*2	64			Φ205
1000KN	M70*3	90			Φ280
