OMS-4000 Fluorescent Magnetic Particle Detector

Name: OMS-4000 Fluorescent Magnetic Particle Detector
Brand: Beijing Lanetech Square Co., Ltd.

Lanetech OMS-4000 Fluorescent Magnetic Particle Detector utilizing interaction between magnetic leakage field and magnetic powder at the defect of the workpiece. It takes advantage of the difference between the permeability of surface & near-surface defects of steel products (such as cracks, slag inclusion, hair lines, etc.) and magnetic permeability of steel, the magnetic field at the discontinuity of these materials will be distorted after magnetization, forming part of the magnetic flux leakage and generating a magnetic leakage field, using the characteristics of the magnetic leakage at the defect site to absorb magnetic powder, thereby attracting magnetic powder to form magnetic powder accumulation at the defect - magnetic marks, under appropriate lighting conditions, the defect location and shape are revealed accordingly.

Send Mail

Application of OMS-4000 Magnetic Detector

It is designed to detect surface and near-surface micro-defects (e.g., cracks, slag inclusions) of ferromagnetic workpieces (such as bolts, pins, bushings, gears, gear rings, crankshafts, etc.) caused by forging, quenching, grinding, fatigue, and other processes.

Compliance Standards:

Magnetic particle flaw detector: GB/T 8290—2011;

Observation conditions for magnetic particle inspection: GB/T 5097-2020 / ISO 3059:2012;

ASTM standard: Magnetic Particle detection method ASTM E1444-01;

EU/International standards: DIN EN ISO 9934-2:2003;

Technical Parameters

Detection range: Diameter（0–260 mm）, Length: 0-1,200 mm (Customizable range 0-3000mm)

Detection method: Fluorescent or non-fluorescent magnetic particle detection

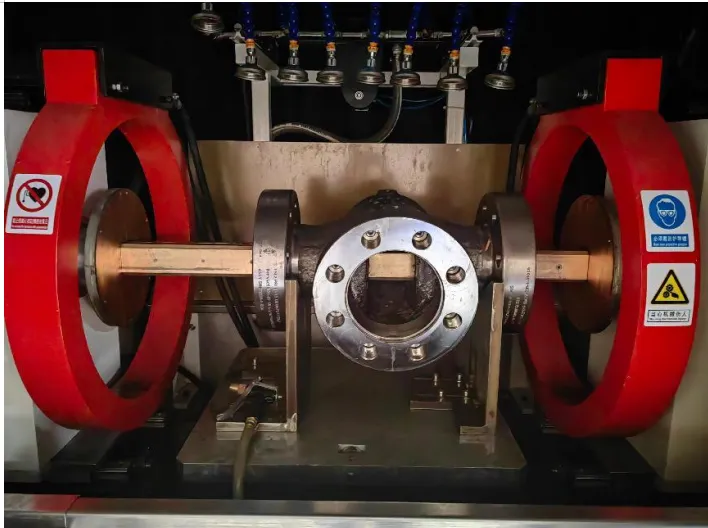

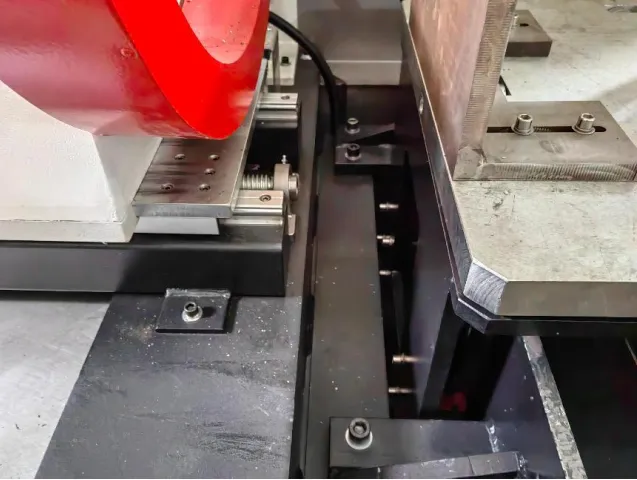

Magnetization method: Circumferential, longitudinal, and composite magnetization

Electrode spacing: 0~1200mm (adjustable), custom range 0~3000mm

Clamping method: Manual/pneumatic clamping

Magnetizing current: 0~4000A

Demagnetization effect: remanence less than 0.3mT

Detection sensitivity: A1 standard test film (15/50) clearly displayed

Power supply: three-phase five-wire AC 380V 50Hz

Technical Parameters OMS-4000 Magnetic Detector

Technical Paramers
Current Name	AC/（HWDC/FWDC）（Optional）

Circumferential magnetization current (A)	3000	4000
Longitudinal magnetization MMF (AT)	12000、16000、18000
Optional coil inner diameter (mm)	350、400、500、600
Optional maximum electrode spacing (mm)	500、1000、1500

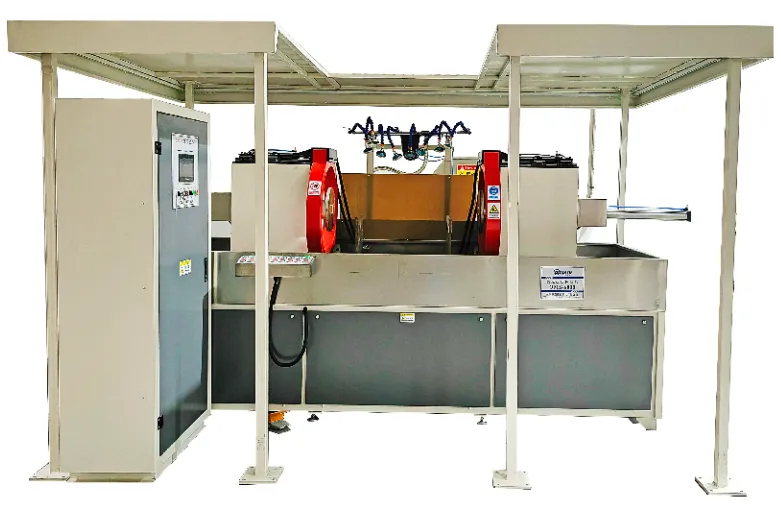

Main unit	Integrated/split (electrical control cabinet separated from main engine)
Sensitivity	Clearly display on Type A test piece (30/50 ,15/50, 7/50)
Duty cycle	≤30%
Control mode	Manual/automatic
Operation interface	Digital ammeter/Touchscreen
Clamping mechanism	Manual/pneumatic
Movement method	Manual/electric
Tail electrode movement	Manual/electric
AC magnetization method	Circumferential, longitudinal, composite magnetization
AC magnetization method	Automatic decay demagnetization
Rectification mode	Half-wave rectification (HWDC)/Full-wave rectification(FWDC)
magnetization method	AC circumferential magnetization, DC circumferential magnetization, AC longitudinal magnetization, DC longitudinal magnetization, AC circumferential + DC longitudinal composite magnetization, DC circumferential + AC longitudinal composite magnetization
DC demagnetization	Ultra-low frequency demagnetization
UV lamp	Suspended / Handheld
Spray time	3–6 seconds / Manual control
Magnetization time	0.5–2 seconds per cycle
Rotation observation time	5–10 seconds
Demagnetization time	3–5 seconds per cycle
Air supply	0.4-0.8MPa
Power supply	Three-phase five-wire, 380V±10%, 50Hz
Overall Dimension (mm)	L: 1.5m+ electrode spacing
	Width: 2000mm; Height: 2200mm
