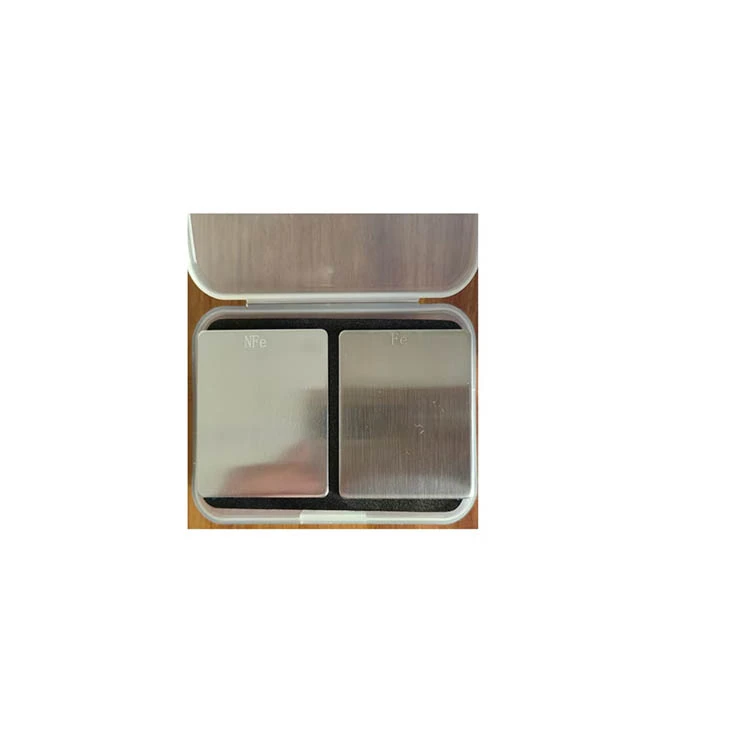

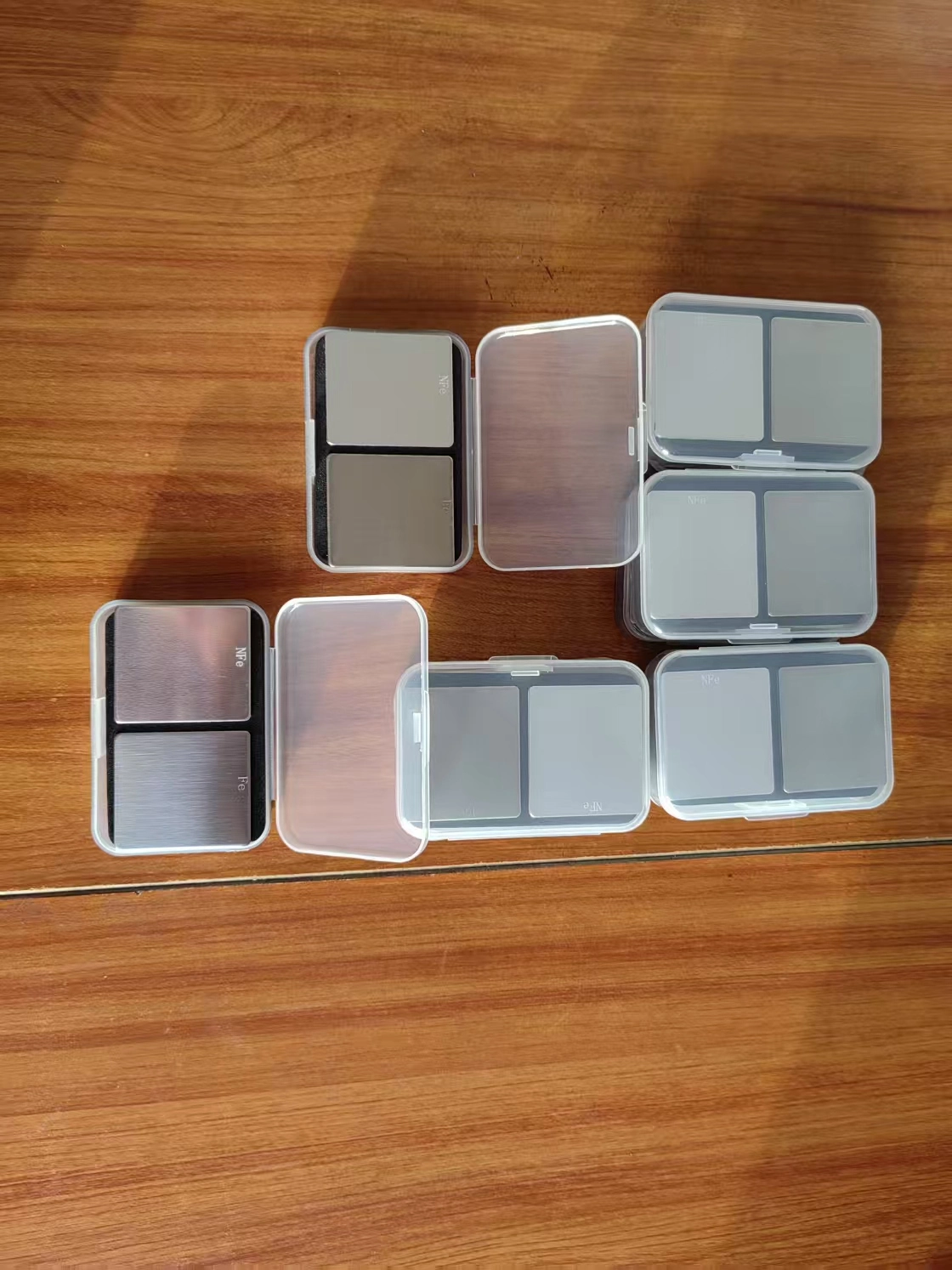

Iron and Aluminum Calibration Blocks

Features of  Iron and Aluminum  Blocks

• Iron blocks for magnetic induction gauges;

• Aluminum blocks (for eddy current gauges) simulate coatings;

• Varying thicknesses, ensuring accurate calibration for metal surface inspections;


Specification of WT3-201 Wire Crimp Pull Testers

1. Core Applications of Iron and Aluminum Calibration Blocks

1. Precision Calibration of Thickness Gauges

• Coating/Paint Thickness Measurement: Iron blocks (for magnetic induction gauges) and aluminum blocks (for eddy current gauges) simulate coatings of varying thicknesses, ensuring accurate calibration for metal surface inspections.

• Material Compatibility: Iron blocks suit ferrous metals (e.g., steel), while aluminum blocks are ideal for non-ferrous metals (e.g., aluminum alloys, copper), covering diverse industrial needs.

2. Flaw Detector Performance Validation

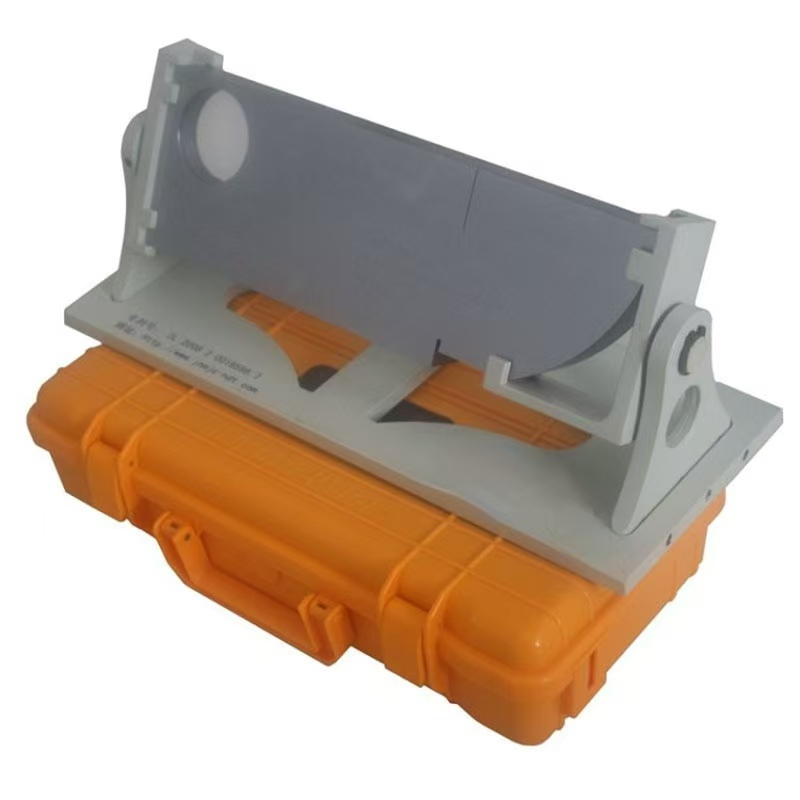

• When paired with V1 calibration blocks, iron/aluminum blocks mimic internal defects like cracks or porosity, enabling precise calibration of ultrasonic flaw detectors or magnetic particle testing equipment to verify sensitivity and defect recognition.

3. Standardization of Testing Processes

• These blocks provide consistent reference parameters, ensuring reproducibility across devices and operators. This reduces human error and aligns with international standards (e.g., ISO, ASTM).

4. Cost-Effectiveness and Ease of Use

• As reusable, low-maintenance tools, they minimize long-term costs. Simple cleaning suffices, and their intuitive design allows quick calibration without extensive training.

2. Key Industries and Use Cases

1. Manufacturing & Automotive

• Critical for coating thickness checks on car bodies (e.g., electrocoat, anti-corrosion layers) and internal defect detection in cast or welded components (e.g., engine parts).

2. Aerospace & Rail Transportation

• Ensure strict compliance for aircraft skin coatings and turbine blade inspections. High-speed rail components (e.g., tracks, wheels) rely on calibrated flaw detectors to identify fatigue cracks.

3. Oil & Gas, Energy

• Monitor anti-corrosion coatings on pipelines and storage tanks. Assess metal integrity in nuclear facilities to guarantee long-term operational safety.

4. Construction & Infrastructure

• Verify fire-resistant coatings on steel structures, measure galvanized layers on bridge cables, and screen weld defects in critical infrastructure projects.

5. Third-Party Testing & Laboratories

• Serve as essential tools for daily equipment calibration and accreditation compliance (e.g., CNAS), ensuring credible and standardized test reports.
